Through-Color Fiber Reinforced Cement Board: The final choice of exterior decorative panels
Time: July 2, 2025
Why Through-Color Fiber Cement Boards Are Gaining Popularity?
As a professional through-color fiber reinforced cement board
Market Evolution Trilogy
Aluminum Panel Era : High cost + thermal deformation issuesCalcium Silicate Board Era : Solved thermal deformation but faced coating challengesThrough-Color Fiber Cement Board Era
Comparative Analysis of Materials
Three Main Facade Options Comparison
Key Parameter Through-Color Fiber Cement Board Calcium Silicate Board Aluminum Panel Cost (¥/m²) 200-350 180-300 400-800 Service Life 50+ years 20-30 years 15-20 years Fire Rating Class A1 Class A Class B1 Thermal Deformation 0.05% 0.1% 0.3% Maintenance Needs Maintenance-free Refurbish every 5 years Maintain every 3 years
Five Core Advantages Explained

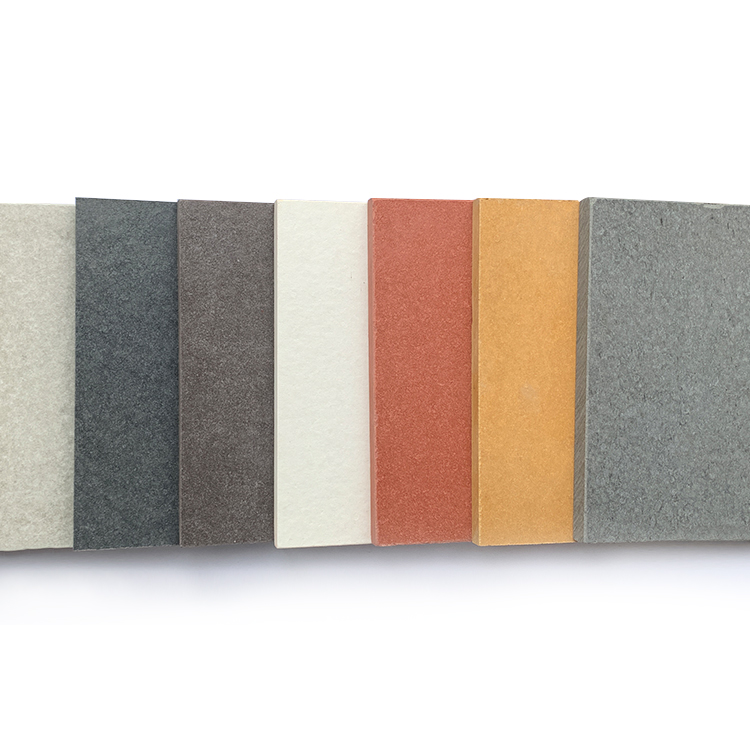

1. Full-Section Coloring Technology
Penetration depth ≥5mm
12 standard colors available
No fading after 5000h UV exposure
2. Exceptional Physical Properties
Density 1.5-1.7g/cm³
Flexural strength ≥18MPa
Withstands 100 freeze-thaw cycles
3. Perfect Solution for Coating Pain Points
No secondary painting required
Eliminates paint peeling completely
Saves 30% construction cost
4. Superior Environmental Adaptability
Temperature range -40℃~80℃
Particularly suitable for extreme climates like Xinjiang
Water absorption ≤16%
5. Safety and Eco-Friendliness
100% asbestos-free
No toxic smoke in fires
Class A radioactivity certification

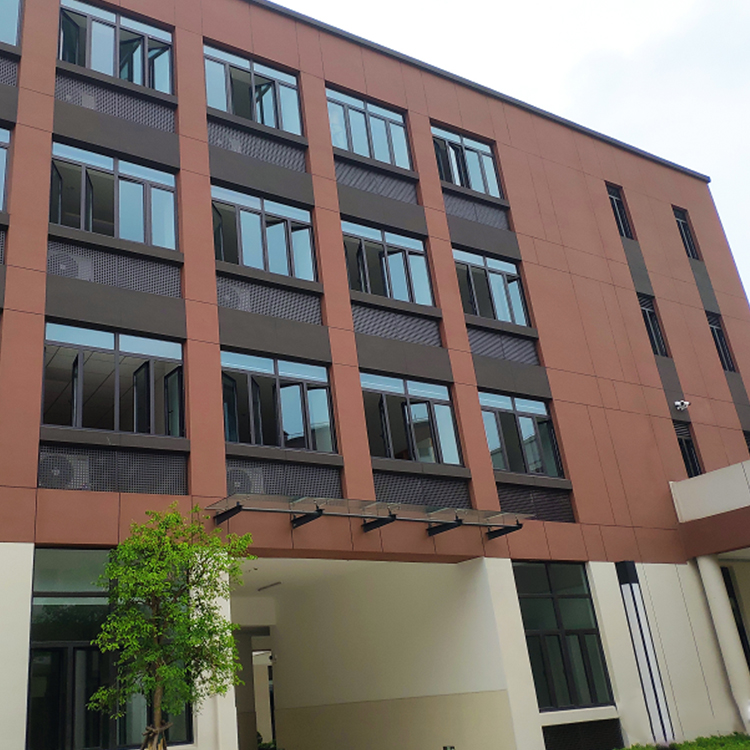

Typical Engineering Applications
1. Extreme Cold Region Project
Government building in Heilongjiang
Board thickness: 18mm
Withstood -35℃ without cracking
2. High UV Radiation Area
Commercial complex in Xinjiang
Color retention ΔE<2 after 5 years
60% maintenance cost savings
3. Coastal High-Humidity Environment
Resort hotel in Hainan
Passed 500h salt spray test
Mold resistance grade 0
Authoritative Technical Test Data
Test Item Standard Requirement Actual Data Flexural Strength ≥15MPa 18-22MPa Water Absorption ≤16% 12-14% Fire Performance Class A1 Certified Freeze-Thaw Resistance 25 cycles 100 cycles unaffected
